Katalog :
Flow Meter NITTO SEIKO Type B-F, PDF

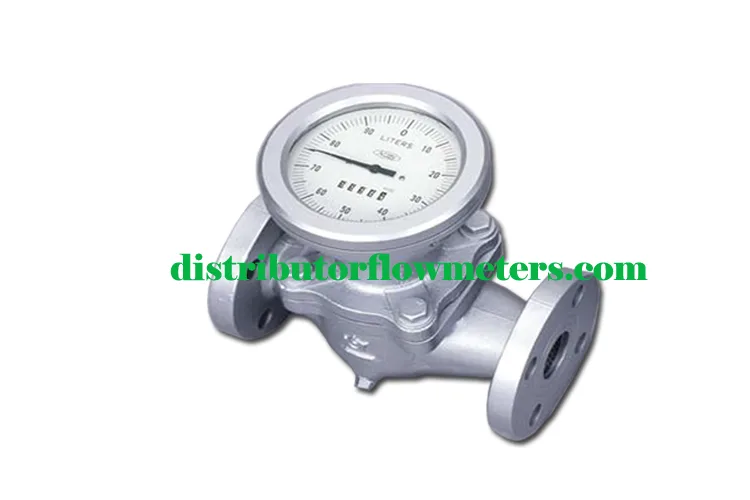

Jual Flow Meter NITTO SEIKO type B-F40A, Water Meter NITTO SEIKO BF40A size 1,5 Inch (40mm) Cold and Hot Water
General Specifications
Figures in parenthesis are for special specification.
Measured liquid : Cold and hot water, High temperature water
Size : 20A, 25A, 40A, 50A
Liquid temp : Normal temp. ～110°C（110～200 °C）
Liquid pressure : 1.0MPa or less（2.0MPa or less）
Accuracy : Within ±1.0%
Material : FB : FCD450/SCS13 ※1
F7 : FCD450/SCS13 ※2
S7 : SCS13/SCS13
Note: Range of products of size 50B is only FB and F7.
※1 Material of size 50B is CAC406.
※2 Material of size 50B is SUS304
