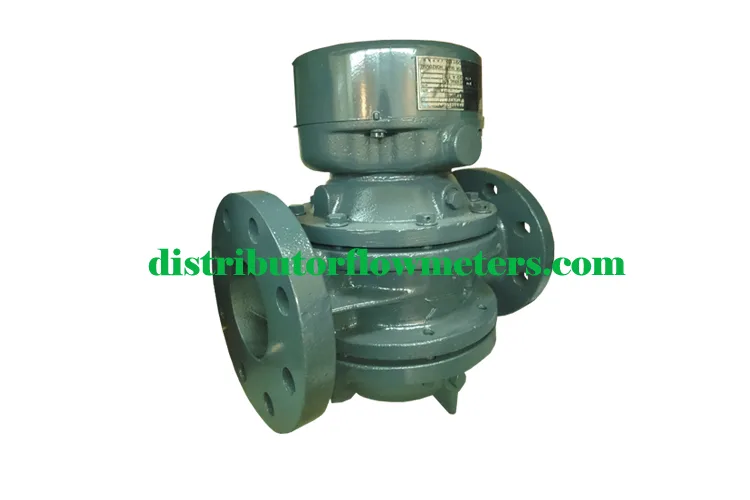

Flow Meter Tokico Type FRO 0845-02X (Non Reset Counter) Size 3 Inch

TOKICO TYPE FRO 0845-02X (Non Reset Counter) Size 3 Inch(80mm)

STANDARD SPECIFICATIONS

Katalog : PT.CGS-KATALOG TOKICO FLOWMETER

STANDARD SPECIFICATIONS
Bore (mm)	80
Accuracy	±0.5%
Flow Range	3,500 – 25,000 L/H
1,2 ̴ 3cP
Diesel, Light Oil
Flow Range	600 ̴ 35,000 L/H
10cP
Heavy Oil
Max. Working	10 kgf/cm²
Pressure	10 kgf/cm²
Hydraulic Test	20 kgf/cm²
Pressure	20 kgf/cm²
Max. Working	100°C
Temperature	100°C
Flange Rating	JIS 10 kgf/cm²FF
Material – Body	Cast Iron (FC25)
Material – Rotor	Cast Iron

Deskripsi

Deskripsi

Jual Oil Flow Meter Tokico Type FRO 0845-02X (Non Reset Counter) Size 3 Inch (80mm), Flow Meter Minyak Tokico, Tokico Oil FL ow Meter,Flow Meter Tokico, Tokico Indonesia, Tokico Japan
