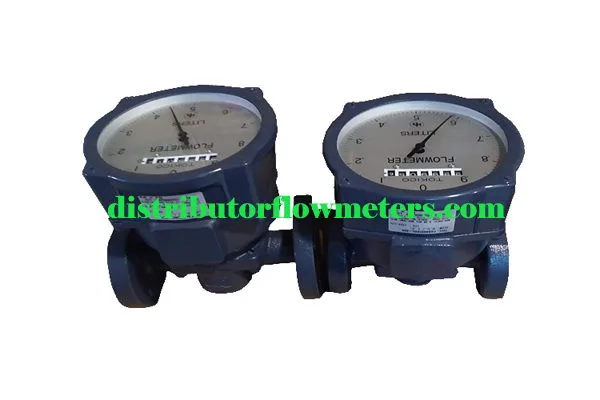

Oil Flow Meter Tokico DN20 FGBB631BDL-02X, Tokico 3/4″ Non reset

Katalog : PT.CGS-KATALOG TOKICO FLOWMETER

FLOW METER TOKICO SIZE 3/4″
STANDARD SPECIFICATIONS
Bore (mm)	20
Accuracy	±0.5%
Flow Range	120 ̴ 1,250 L/H
1,2 ̴ 3cP
Diesel, Light Oil
Flow Range	20 – 1,250 L/H
10cP
Heavy Oil
Max. Working	10 kgf/cm²
Pressure	10 kgf/cm²
Hydraulic Test	20 kgf/cm²
Pressure	20 kgf/cm²
Max. Working	Standard : 80°C for diesel & light oil
Temperature	Optional : 120°C for heavy oil
Flange Rating	JIS 10 kgf/cm²FF
Material – Body	Cast Iron (FC25)
Material – Rotor	Resin
Counter Unit	Integrating pointer and
	integrating counter
	(a reset counter is also available)
Flow Direction	Right → Left
Paint Color	Munsell 1.4PB3.1 1/2″

Deskripsi

Deskripsi

Jual Oil Flow Meter Tokico FGBB631BDL-02X (Non Reset) Size 3/4 Inch (20mm), Flow Meter Minyak Tokico, Tokico Oil Flow Meter,Flow Meter Tokico, Tokico Indonesia, Tokico Japan
