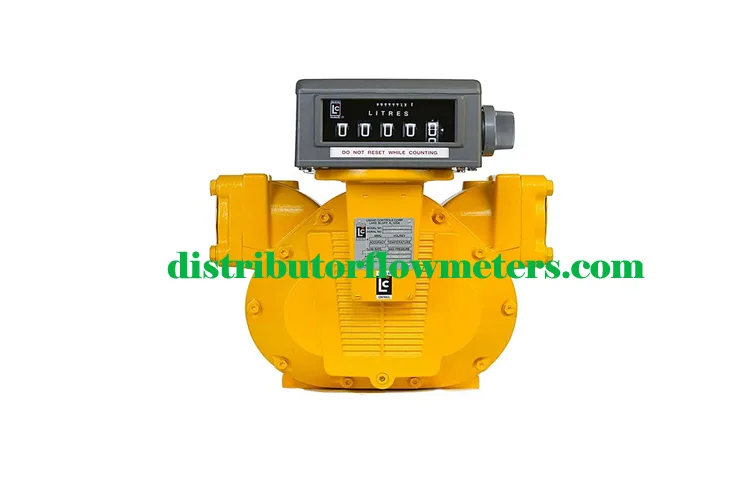

Oil Flow Meter LC (Liquid Controls) model LC M30 (350 GPM) Size 3 Inch, Flow Meter Minyak Liquid Controls LC M-30

Oil Flow Meter LC (Liquid Controls) model LC M30 Size 3 inch, Flow Meter Minyak Liquid Controls M-30, unit Only Tanpa Air Eliminator dan strainer

STANDARD SPECIFICATIONS

Katalog :
katalog-LC-Liquid Control
LC-Brochure-Liquid Control

Deskripsi

Jual Flow Meter LC, Liquid Controls Flow Meter, LC, Spesifikasi

  • 350 GPM / 1325 LPM
  • Rated to 150psi / 10.5 BAR.
  • 3 or 4 NPT Standard Flange Size
  • Class 2 meter handles the transfer of aviation fuels including 100LL and Jet Fuel
  • Low pressure drop-will operate on gravity flow or pump pressure.
  • Sustained accuracy-no wear from metal-to-metal contact inside the measuring chamber means minimal deterioration in accuracy over time, fewer recalibrations, and longer service life. Meters conform to NIST and InternationalWeights and Measures accuracy requirements.
  • Wide temperature range-products can be metered accurately from -40° F (-40° C) to 160° F (71°C).
  • Wide viscosity range-LC meters can accurately meter products from less than 30 SSU (less than 1 centipoise) to 1,500,000 SSU (325,000 centipoise).
  • Maximum adaptability-right angle design with choice of stock or custom elbows/ fittings provides unequaled mounting flexibility to meet your installation requirements.
