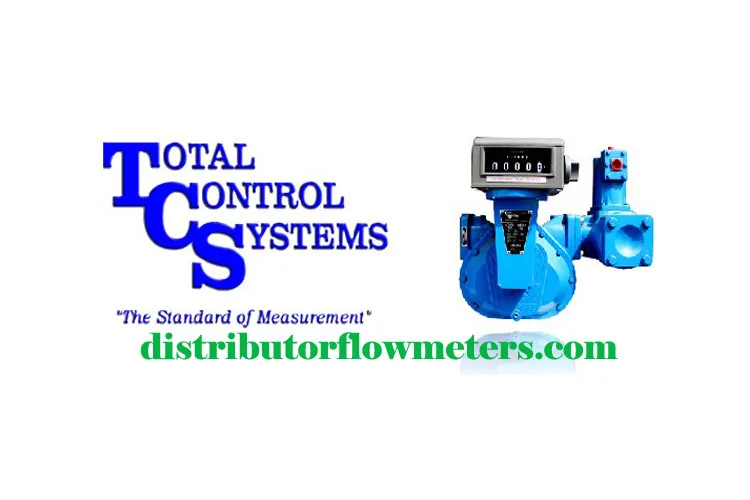

Flow Meter TCS 700-60

Flowmeter TCS 700-60, Total Control Systems TCS 700-60 Ukuran 6 Inch

Katalog :
TCS 700 Brochure,Pdf

TCS 700-60

The 700 6″ rotary flow meter is engineered to meter liquid at up to 800 GPM (3,040 LPM).

  • Flow: Capable of up to 800 GPM (3,040 LPM);  Bi-directional Flow
  • Flange Connections: 6” ANSI Flange
  • Linear Accuracy: Capable of ± 0.15% of over the full flow range
  • Repeatability: Capable of 0.02% (constant operation conditions with 700SP meters & mechanical registration, using 1 CPS test fluid)
  • Viscosity: Will accurately measure liquids up to 1,500,000 SSU (325,000 CPS)
  • Working Pressure: 150 PSI (10.5 BAR)
  • Working Temperature: – 40 to 160°F (- 40 to 71°C)
Kategori: Tag: , , , , ,

Deskripsi

Flowmeter TCS Type

  • 700 IC – Industrial Products Carbon Bearings

    Information
    Materials of Construction: Anodized Aluminum, Stainless Steel, Carbon Graphite, Treated Stainless Steel, Ni-Resist, Simriz*, PTFE
    For metering Alcohols, Chemicals, Solvents, Water and many other Non-Lubricating Liquids such as Acetones, Ethanol, Naphta, Xylene, MEK, Toluene, Resins, etc.

  • 700 IP – Industrial Products Stainless Steel Bearings

    Information
    Materials of Construction: Anodized Aluminum, Stainless Steel, Treated Stainless Steel, Ni-Resist, Simriz*, PTFE
    For Food Processing, Chemicals, General Solvents and many other liquids such as Corn Syrup, Soy Bean Oil, Liquid Sugars, Shortenings, Latex Products, Adhesives, etc.

  • 700 SP – Standard Petroleum Meters

    Information
    Materials of Construction: Anodized Aluminum, Stainless Steel, Treated Stainless Steel, Ni-Resist, FKM
    For metering refined petroleum products such as Gasoline, Fuel Oils, Diesel, Bio-Diesel, Kerosene, Vegetable Oils, Motor Oils, Naptha, Ethylene Glycol, etc.

  • 700 SPA – Standard Petroleum Aviation

    Information
    Materials of Construction: Anodized Aluminum, Stainless Steel, Carbon Graphite, Treated Stainless Steel, Ni-Resist, FKM
    For metering refined petroleum products such as Aviation Gasoline, Jet Fuels, Ethanol, Gasoline, Fuel Oils, Diesel, Bio-Diesel, Kerosene, Vegetable Oils, Motor Oils, Naptha, Ethylene Glycol, etc.
