Katalog : Flow Meter NITTO SEIKO Type RC, Pdf

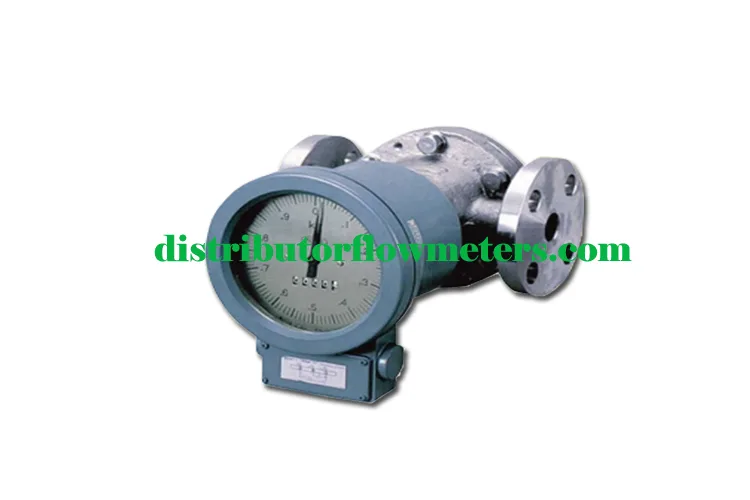

Jual Flow Meter NITTO SEIKO type RC 25A Type With Pulse Size 1 Inch (25mm)
General Specifications
Figures in parenthesis are for special specification.
Measured liquid: Cold and hot water, Petroleum,
Chemical liquids, Food liquids, etc.
Size: 20A,25A (20B, 20C, 25C, 25A)
Liquid viscosity: 0.5～3,000mPa•s （0.2～30,000mPa•s）
Liquid temp.: Normal temp.～80℃ （－20～200 ℃）
Liquid pressure: 1.0MPa or less （2.0MPa or less）
Accuracy: Within ±0.5%
Material: FC200/CAC406, FC200/FC200
FC200/SCS14, SCS14/SCS14
The size 20mm can not be manufactured for other flow meters than
made of FC200/CAC406 (for oil) and SCS14/SCS14 (Material
approved of the use for high pressure gas)
