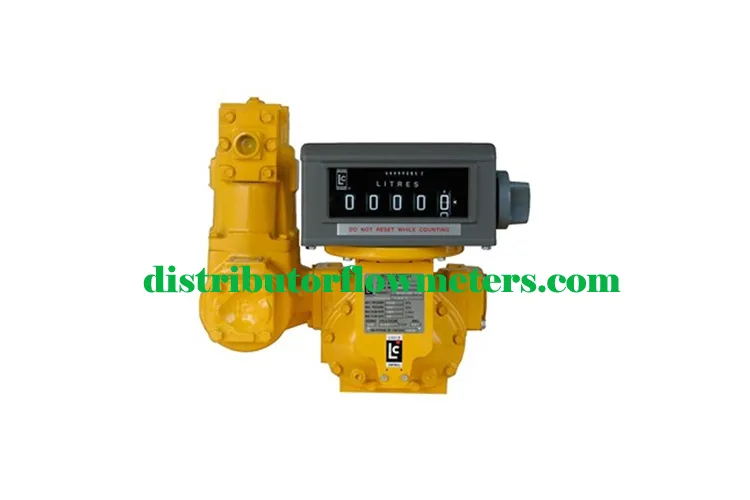

Flow Meter Liquid Controls M10-C-1

Jual Flow Meter LC (Liquid Controls) model LC M10-C-1, Size 2 Inch, Flow Meter Minyak Liquid Controls M-10-C-1, Complite Air Eliminator dan strainer, LC M10-C, Liquid Controls M10-C-1, Oil Meter LC, Oil Flow Meter LC

STANDARD SPECIFICATIONS

Katalog :
katalog-LC-Liquid Control
LC-Brochure-Liquid Control

Deskripsi

Jual Flow Meter LC M10-C-1, Liquid Controls M10-C1,Oil Flow Meter Liquid Controls, Flow Meter LC 2 Inch,

Spesifikasi

  • 150 GPM / 550 LPM
  • Rated to 150psi / 10.5 BAR.
  • 2 NPT Standard Flange Size
  • Class 2 meter handles the transfer of aviation fuels including 100LL and Jet Fuel
  • Low pressure drop-will operate on gravity flow or pump pressure.
  • Sustained accuracy-no wear from metal-to-metal contact inside the measuring chamber means minimal deterioration in accuracy over time, fewer recalibrations, and longer service life. Meters conform to NIST and InternationalWeights and Measures accuracy requirements.
  • Wide temperature range-products can be metered accurately from -40° F (-40° C) to 160° F (71°C).
  • Wide viscosity range-LC meters can accurately meter products from less than 30 SSU (less than 1 centipoise) to 1,500,000 SSU (325,000 centipoise).
  • Maximum adaptability-right angle design with choice of stock or custom elbows/ fittings provides unequaled mounting flexibility to meet your installation requirements.
