Deskripsi

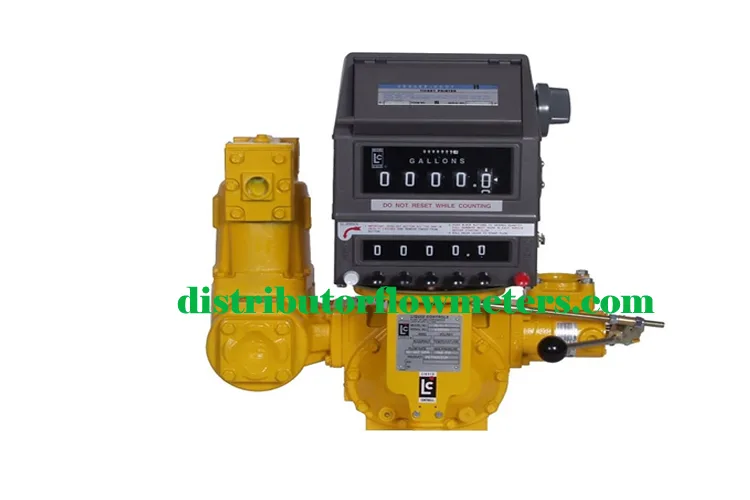

Jual Flow Meter LC M25, Liquid Controls M-25, Flow Meter Minyak Liquid Controls Complite Accessories
Spesifikasi
- 300 GPM / 1136 LPM
- Rated to 150psi / 10.5 BAR.
- 3 NPT Standard Flange Size
- Class 2 meter handles the transfer of aviation fuels including 100LL and Jet Fuel
- Low pressure drop-will operate on gravity flow or pump pressure.
- Sustained accuracy-no wear from metal-to-metal contact inside the measuring chamber means minimal deterioration in accuracy over time, fewer recalibrations, and longer service life. Meters conform to NIST and InternationalWeights and Measures accuracy requirements.
- Wide temperature range-products can be metered accurately from -40° F (-40° C) to 160° F (71°C).
- Wide viscosity range-LC meters can accurately meter products from less than 30 SSU (less than 1 centipoise) to 1,500,000 SSU (325,000 centipoise).
- Maximum adaptability-right angle design with choice of stock or custom elbows/ fittings provides unequaled mounting flexibility to meet your installation requirements.
